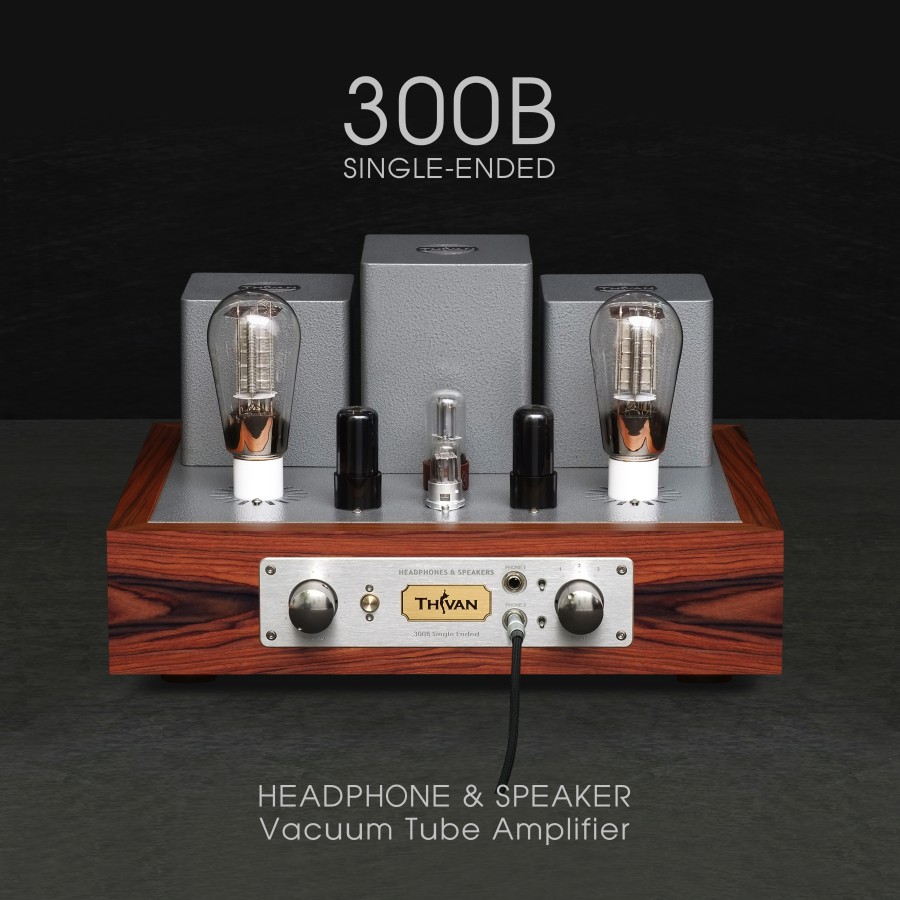

Headphone & Speaker 300B Single-ended Amplifier
SPECIFICATIONS
| Pure Class A – Zero Feed back | |
| Inputs | 1 x XRL ; 2 x RCA |
| Speakers | 4, 6, 8, 16 Ohms |
| Vacuum tube complement | |
| – Input & Driver tube | 1 x 12AU7 ; 1 x 6SN7 ; 2x6V6 |
| – Power tube | 2 x 300B |
| Output Power | 7.5W/ch |
| Frequency response | 10 Hz – 30 kHz (-1dB) ; 20Hz – 20kHz (-0.1dB) |
| Input Sensitivity | 600mV |
| Input Impedance | 100 kOhms |
| Power Requirements | 220V (possible to set 100 /110/117/240v/50-60Hz by different markets) |
| Power Consumption | 120W |
| Dimensions (cm/block) (W x D x H) |
45 x 40 x 26 (cm) |
| Weight | 35 kgs |
