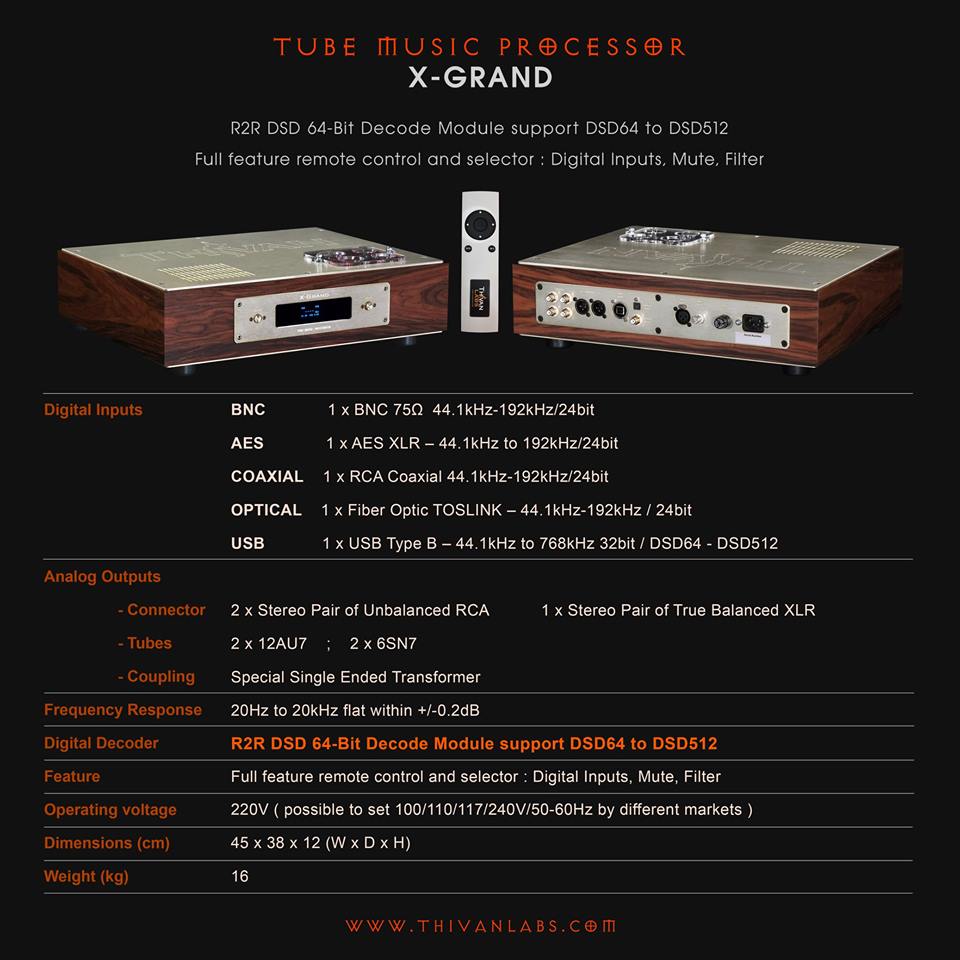

Tube Music Processor X-GRAND
SPECIFICATIONS
| Digital Inputs | BNC: 1 x BNC 75Ω 44.1kHz-192kHz/24bit |
| AES: 1 x AES XLR – 44.1kHz to 192kHz/24bit | |
| COAXIAL: 1 x RCA Coaxial 44.1kHz-192kHz/24bit | |
| OPTICAL: 1 x Fiber Optic TOSLINK – 44.1kHz-192kHz / 24bit | |
| USB: 1 x USB Type B – 44.1kHz to 768kHz 32bit / DSD64 – DSD512 | |
| Analog Outputs | |
| – Connector | 2 x Stereo Pair of Unbalanced RCA 1 x Stereo Pair of True Balanced XLR |
| – Tubes | 2 x 12AU7 ; 2 x 6SN7 |
| – Coupling | Special Single Ended Transformer |
| Frequency Response | 20Hz to 20kHz flat within +/-0.2dB |
| Digital Decoder | R2R DSD 64-Bit Decode Module support DSD64 to DSD512 |
| Feature | Full feature remote control and selector: Volume, Digital Inputs, Mute, Filter |
| Operating voltage | 220v (possible to set 100/110/117/240V/50-60Hz by different markets) |
| Dimensions (cm) | 45 x 38 x 12 (W x D x H) |
| Weight (kg) | 16 |
