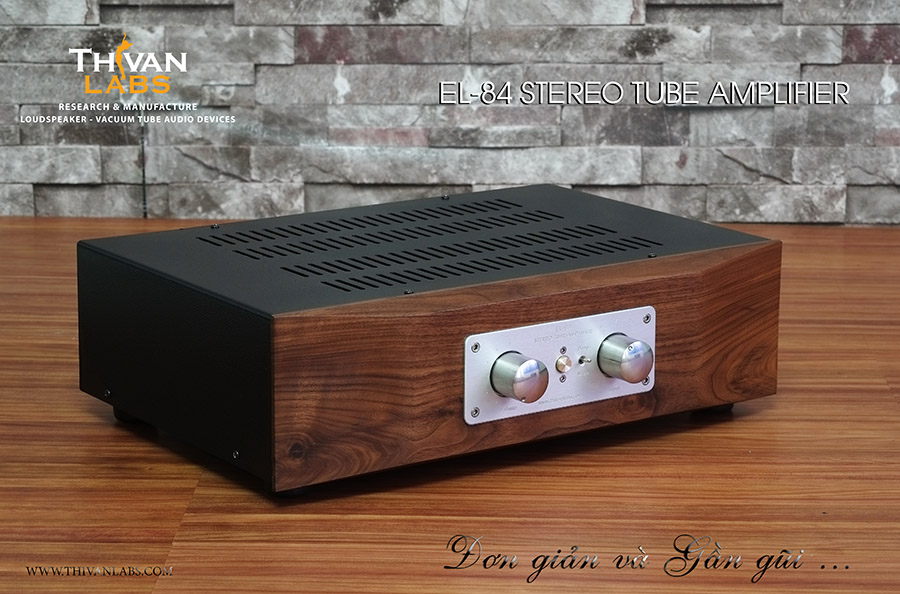

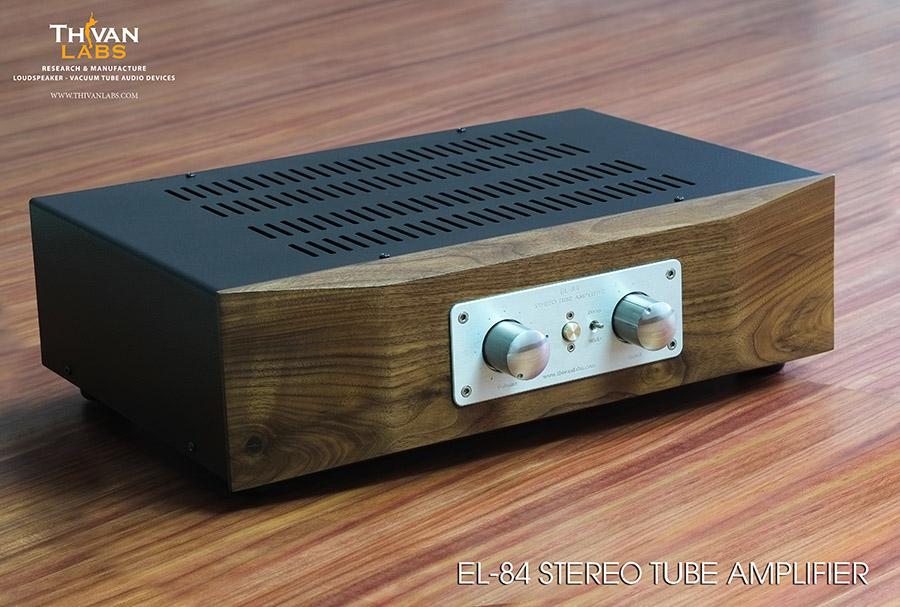

EL-84 Stereo Tube Amplifier
SPECIFICATIONS
| Inputs | 1 x XLR ; 2 x RCA |
| Speakers | 4, 6, 8, 16 Ohms |
| Vacuum tube complement (per channel) | EL-84 x 4; 12AX7 x 1; 12AU7 x 1; |
| Output Power | 10 W/ch |
| Frequency response | 6 Hz – 25 kHz (-3dB) |
| Signal-to-Noise Ratio | 100dB |
| Input Sensitivity | 800mV |
| Input Impedance | 100 kOhms |
| Power Requirements | 220V (POSSIBLE TO SET 100/110/ 117/240V/ 50-60Hz BY DIFFERENT MARKETS) |
| Power Consumption | 65W |
| Dimensions (cm/block) (W x D x H) (W x D x H) |
43 x 36 x 14 |
| Weight | 18 kgs |
